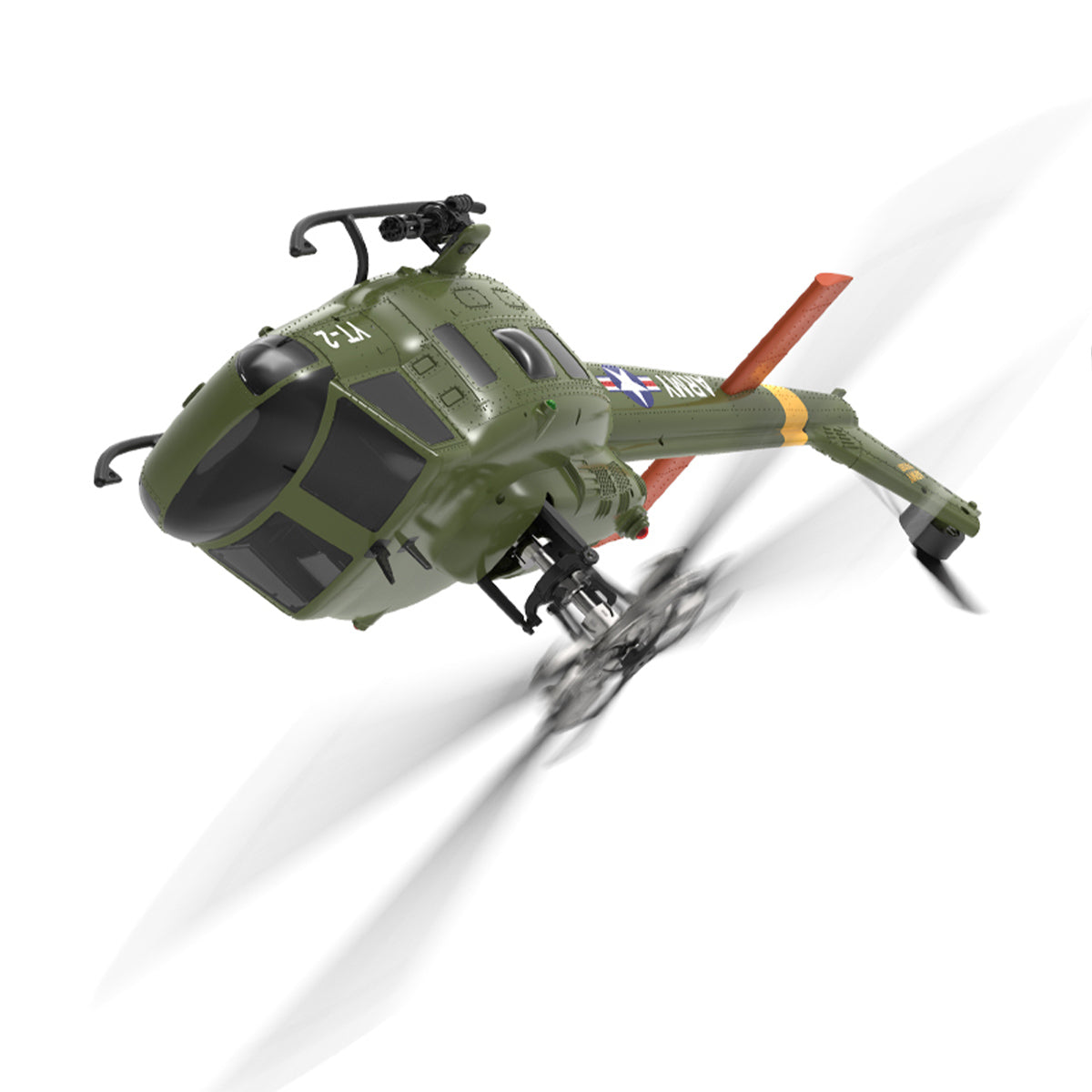

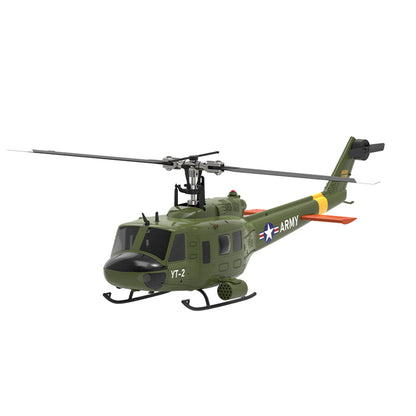

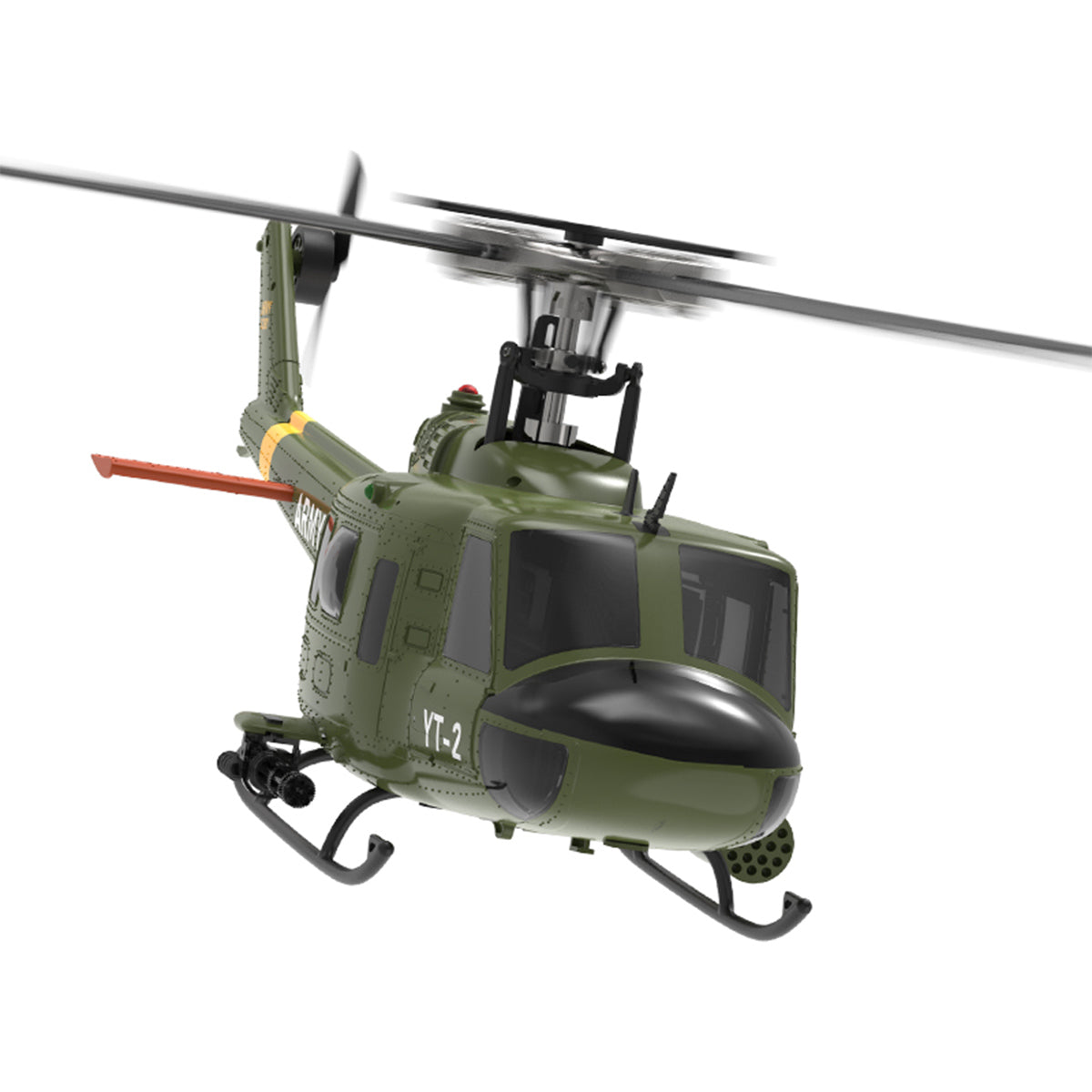

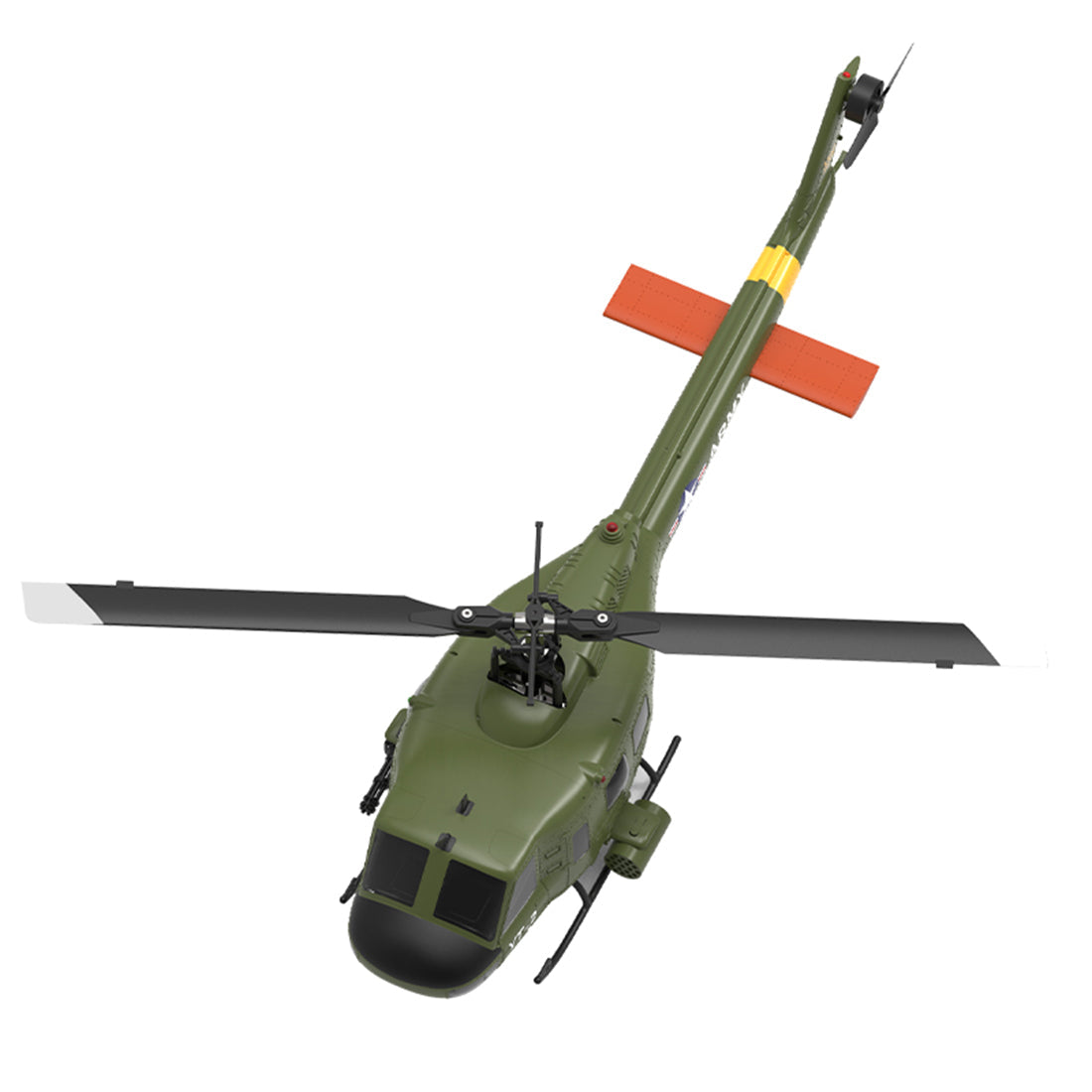

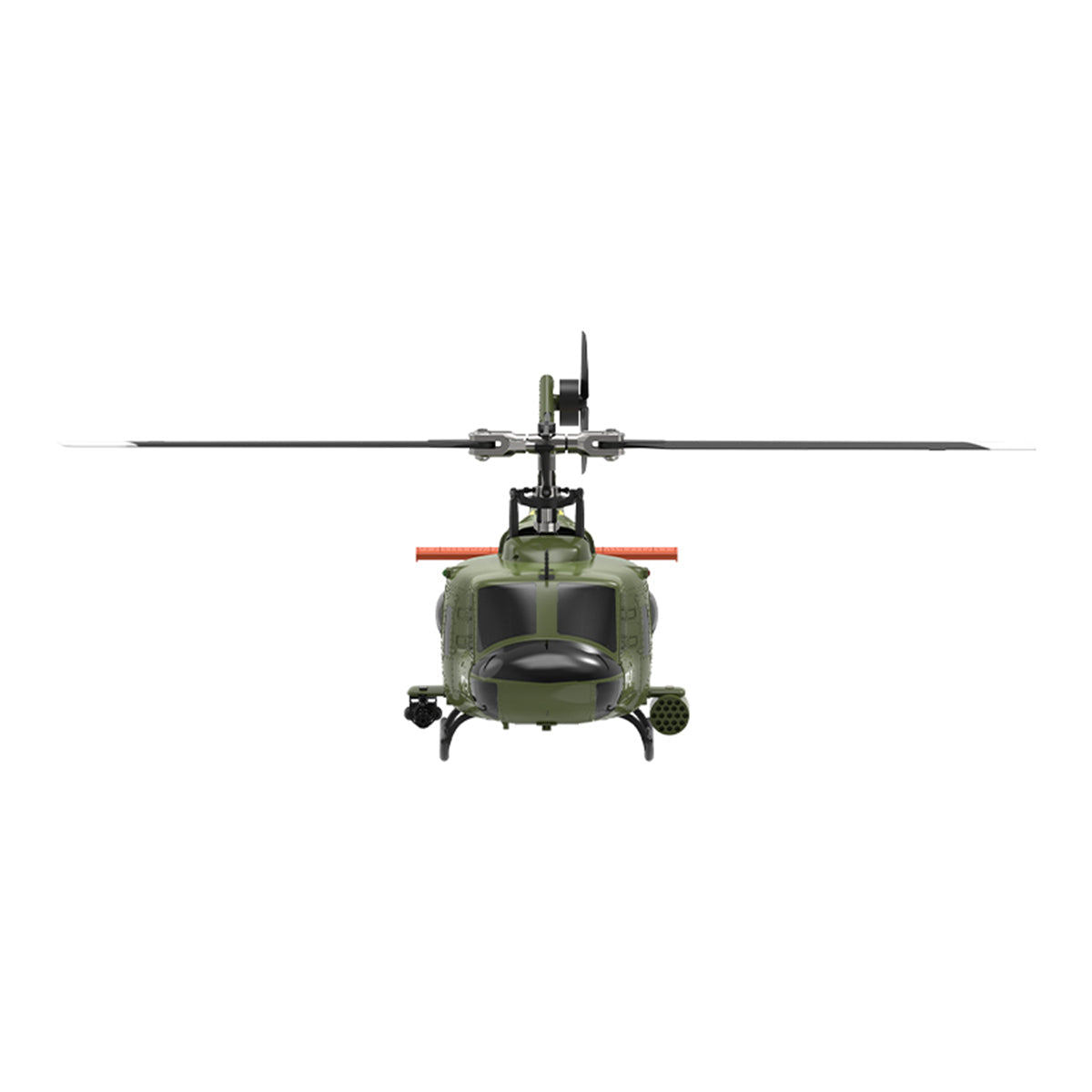

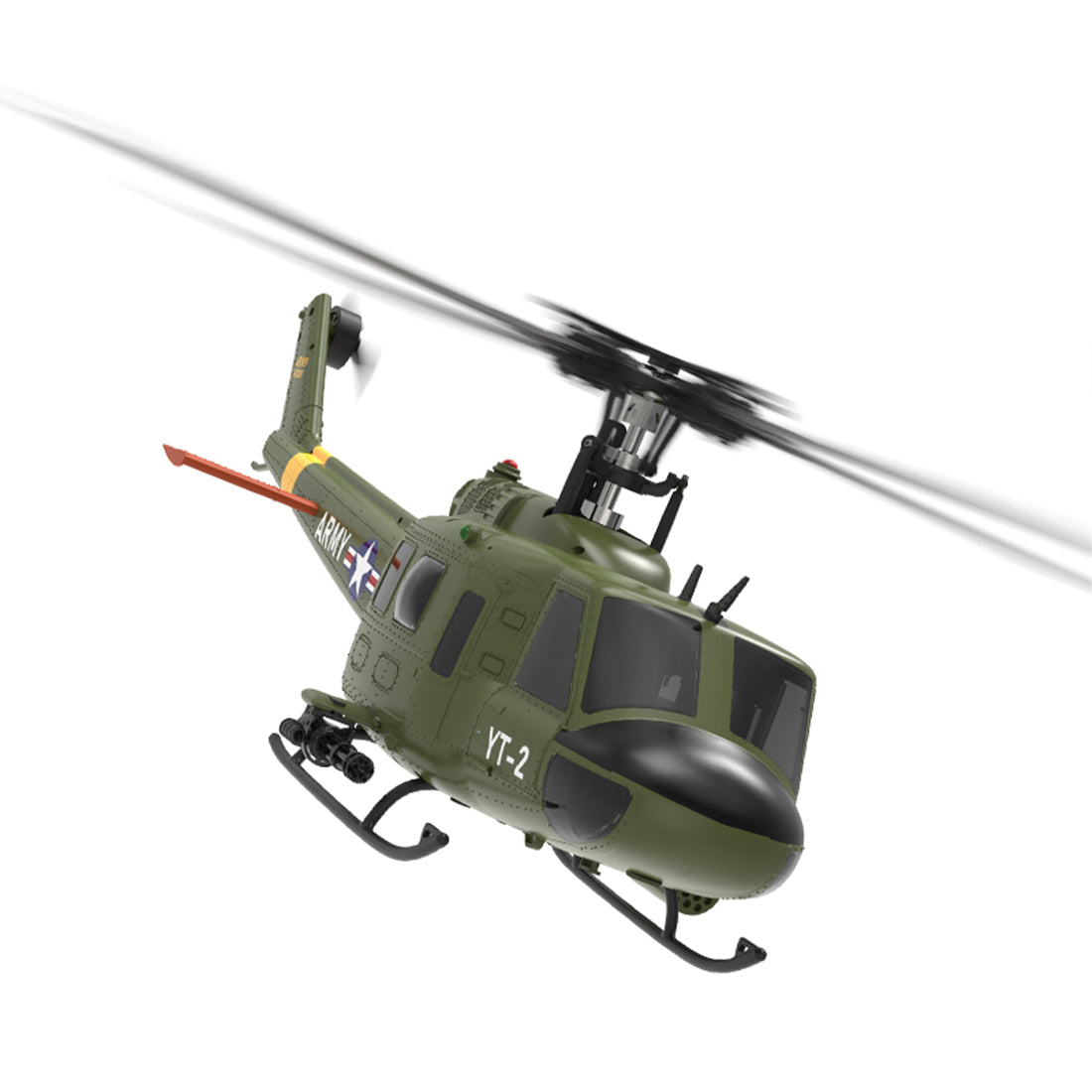

YU XIANG F07/F07-V 1/34 Scale UH-1 Huey 2.4G 6CH Brushless Direct-Drive 6G Flybarless RC Helicopter Model (RTF Version/Mode1/Mode2)

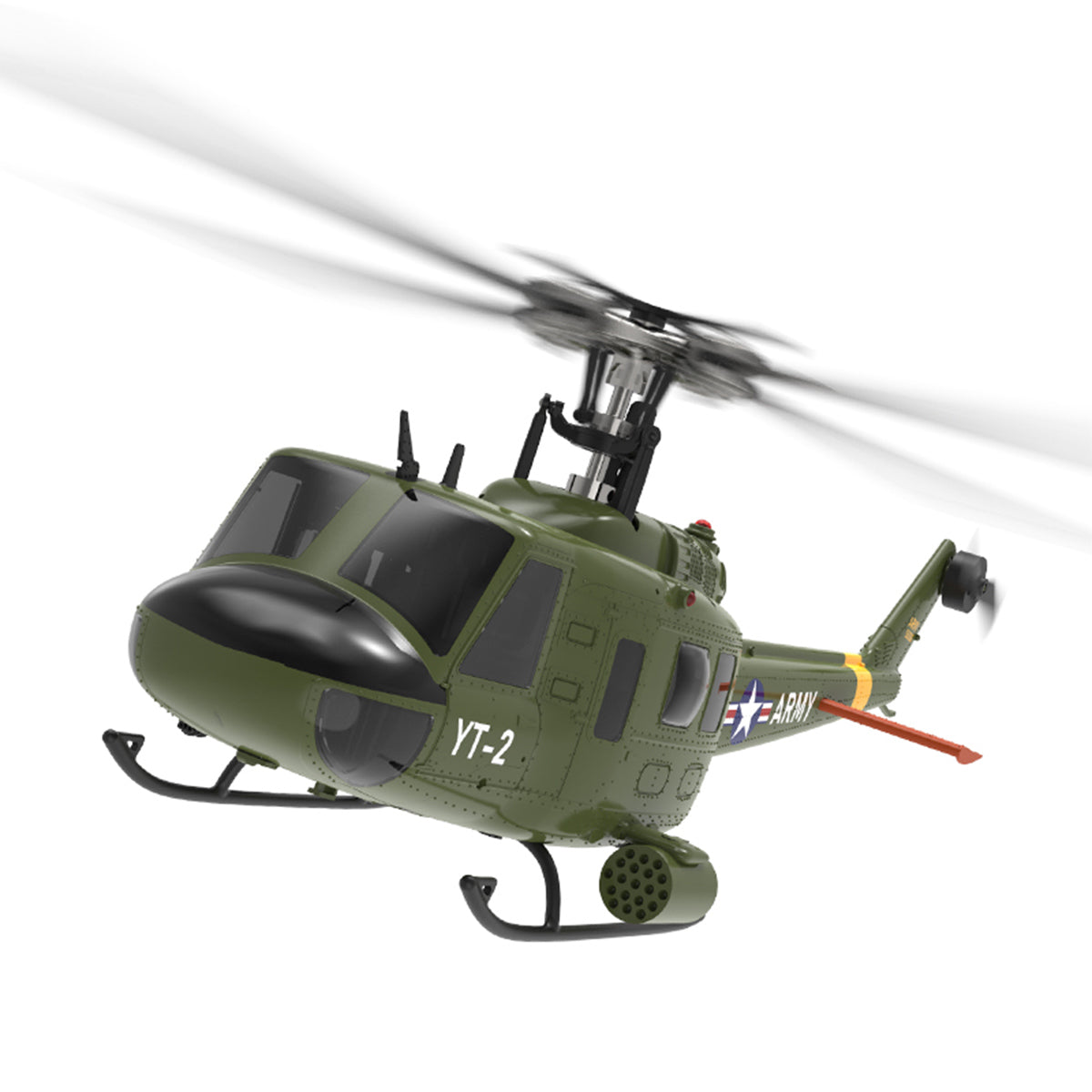

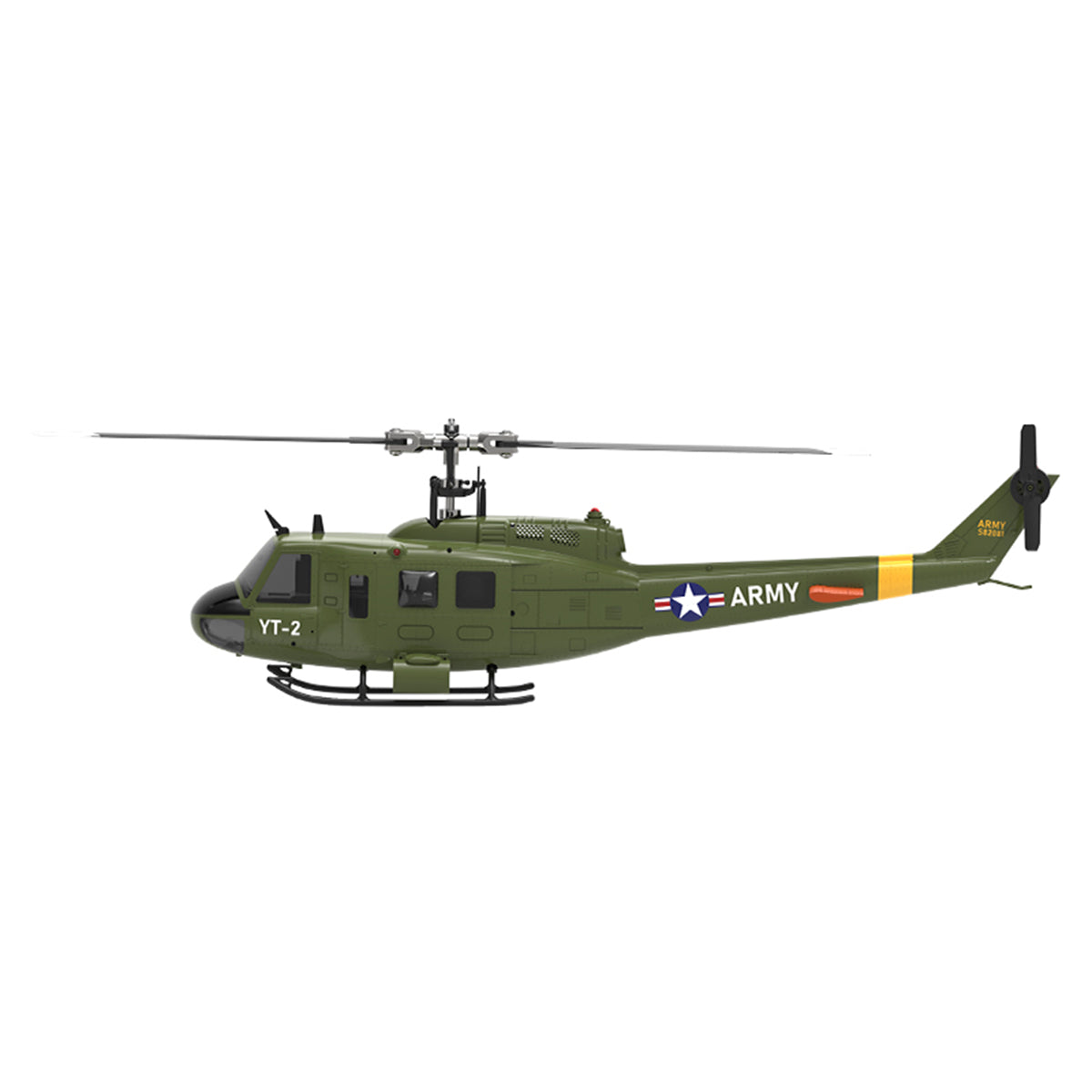

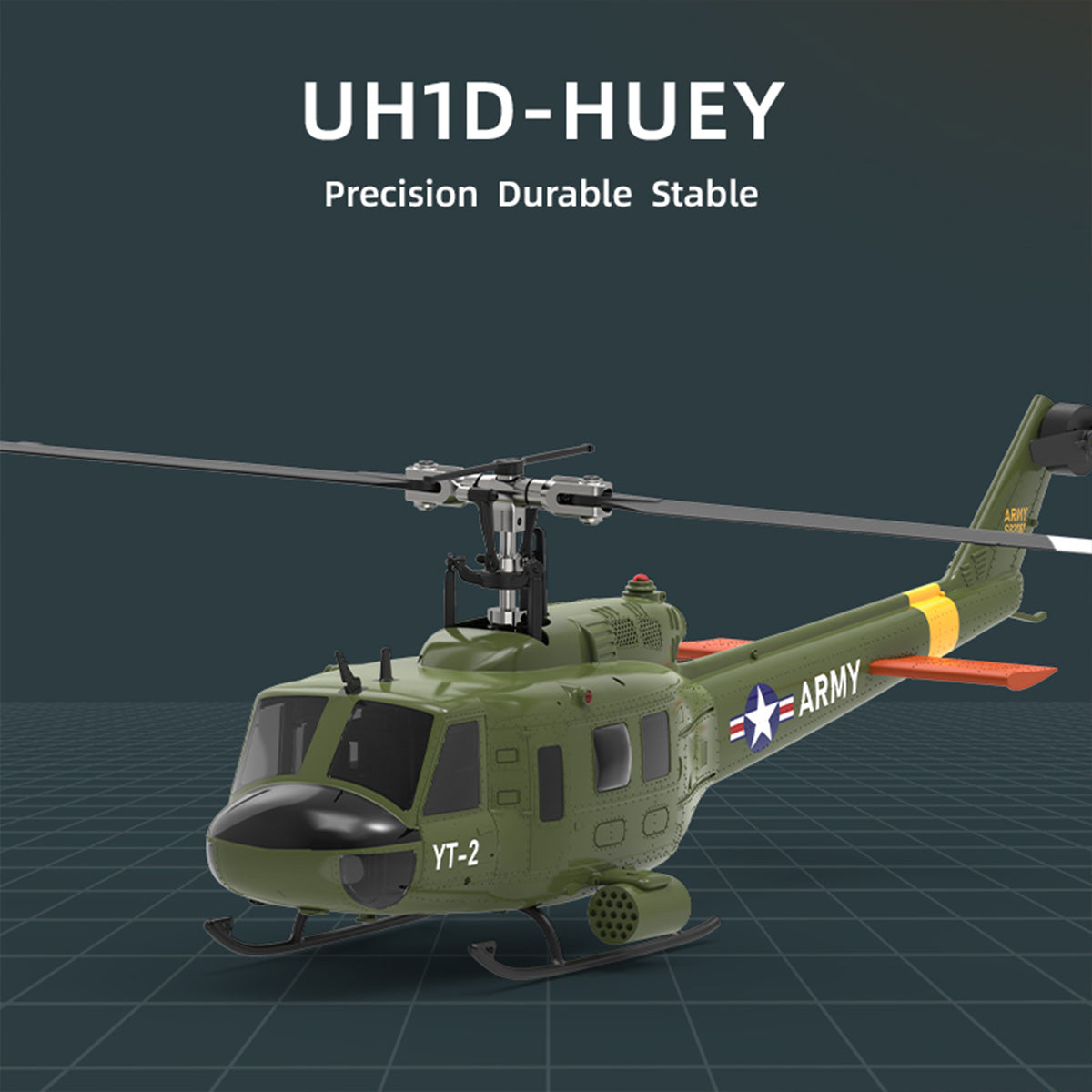

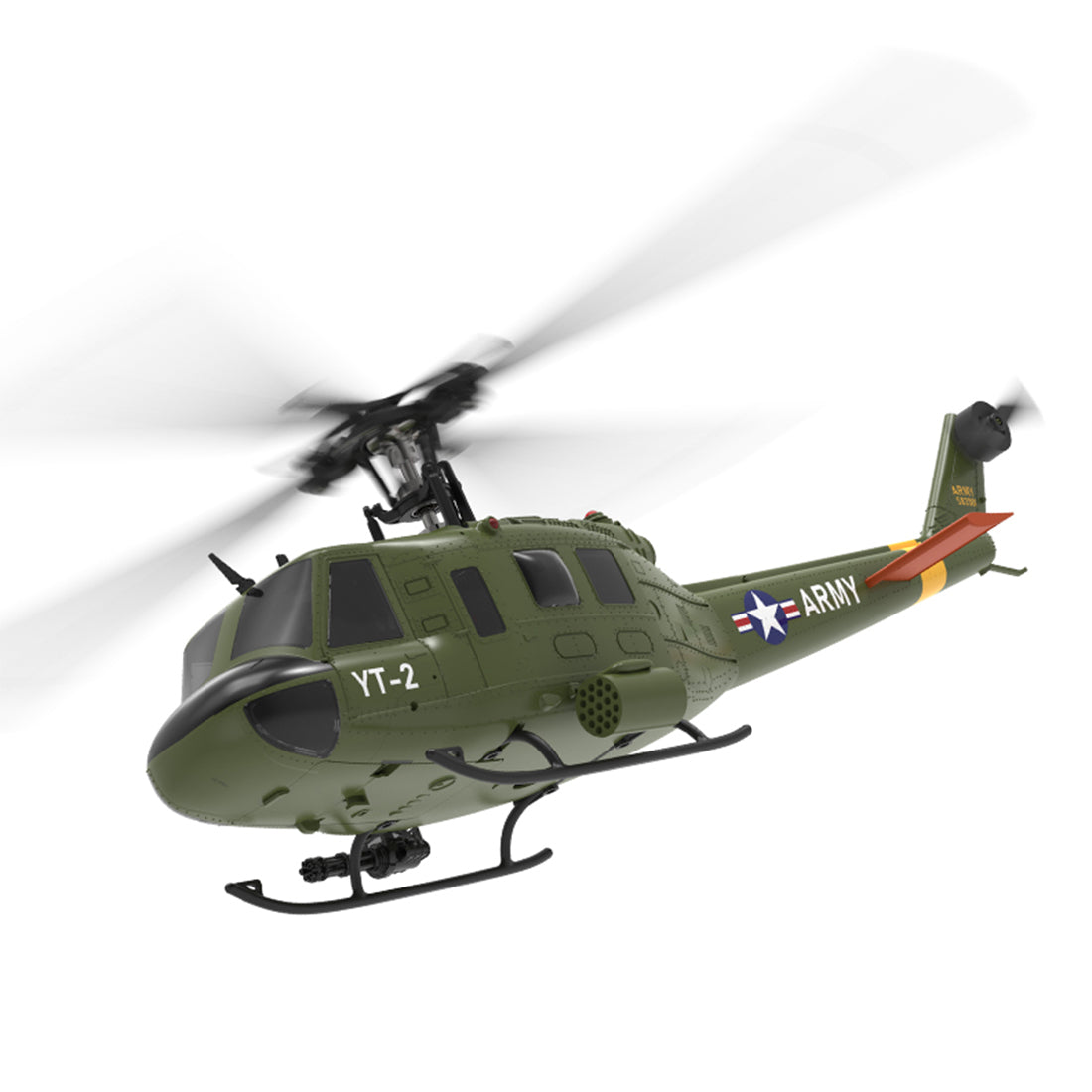

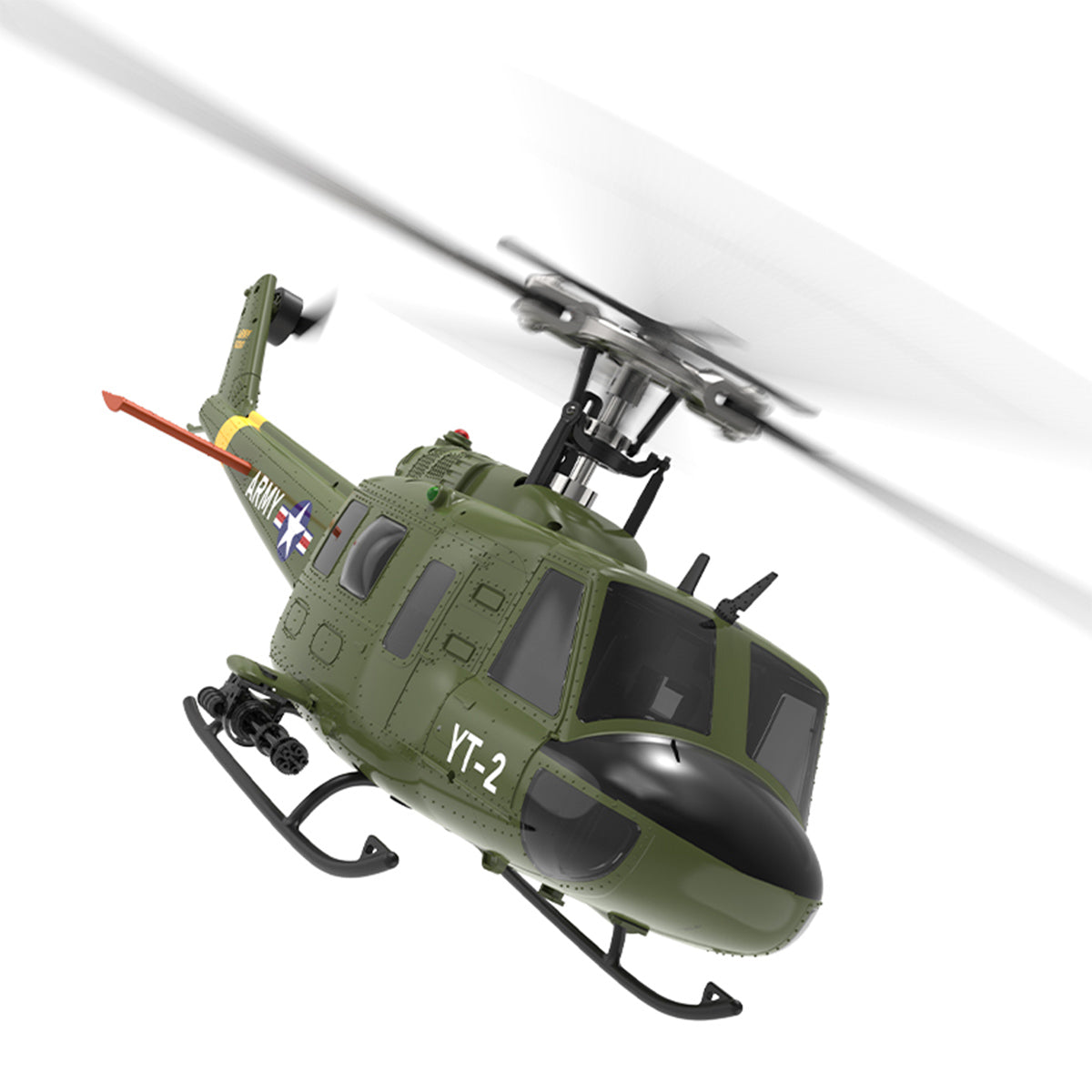

The YU XIANG F07/F07-V is a 1/34 scale RC helicopter modeled after the iconic Bell UH-1 Huey. This model offers a blend of realistic design and advanced flight features, making it suitable for both beginners and experienced pilots.

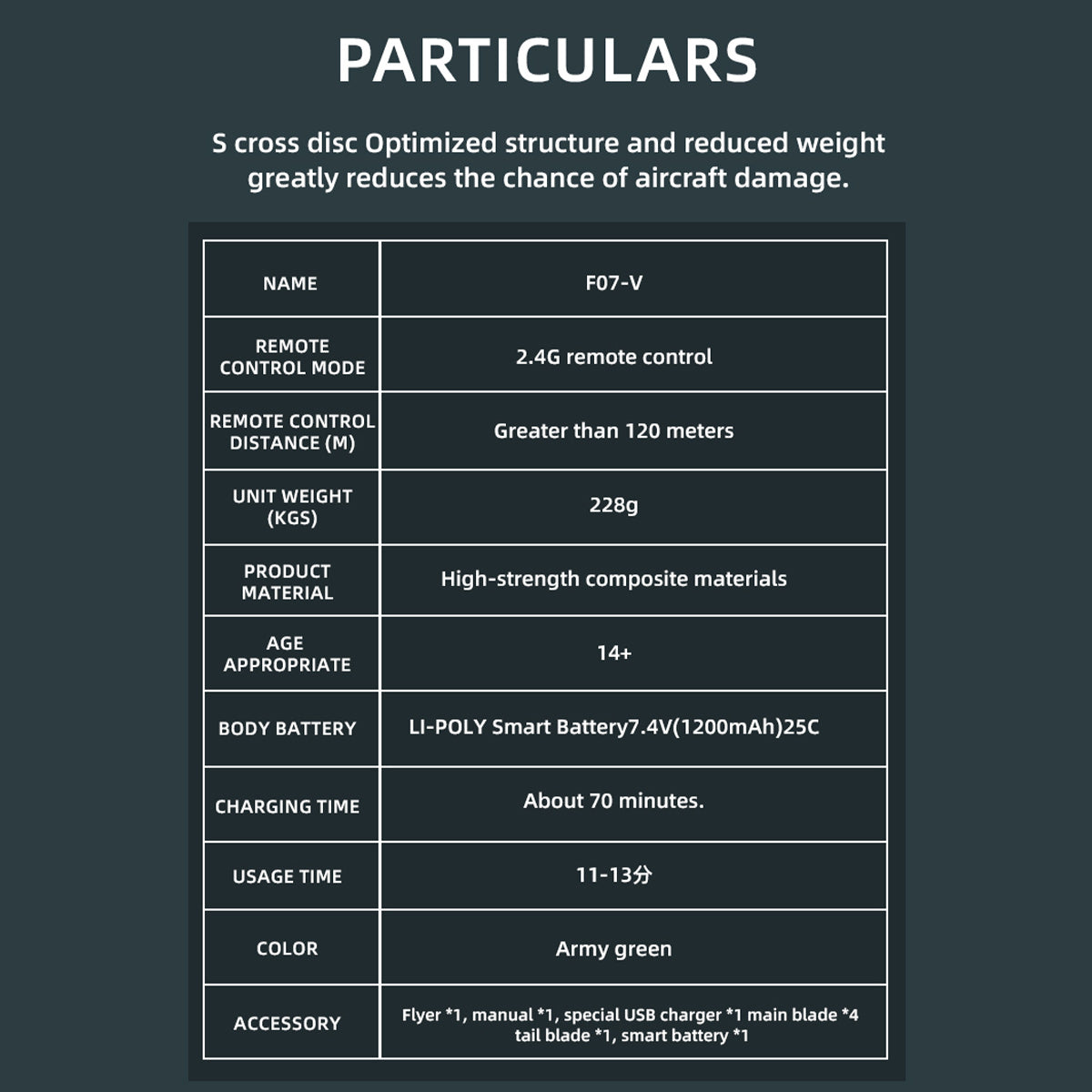

Product information parameters

Article number: F07 (UH-1 six-channel intelligent 6G flybarless simulation (Huey) helicopter)
Material: high-strength composite engineering material;
Color: as shown;

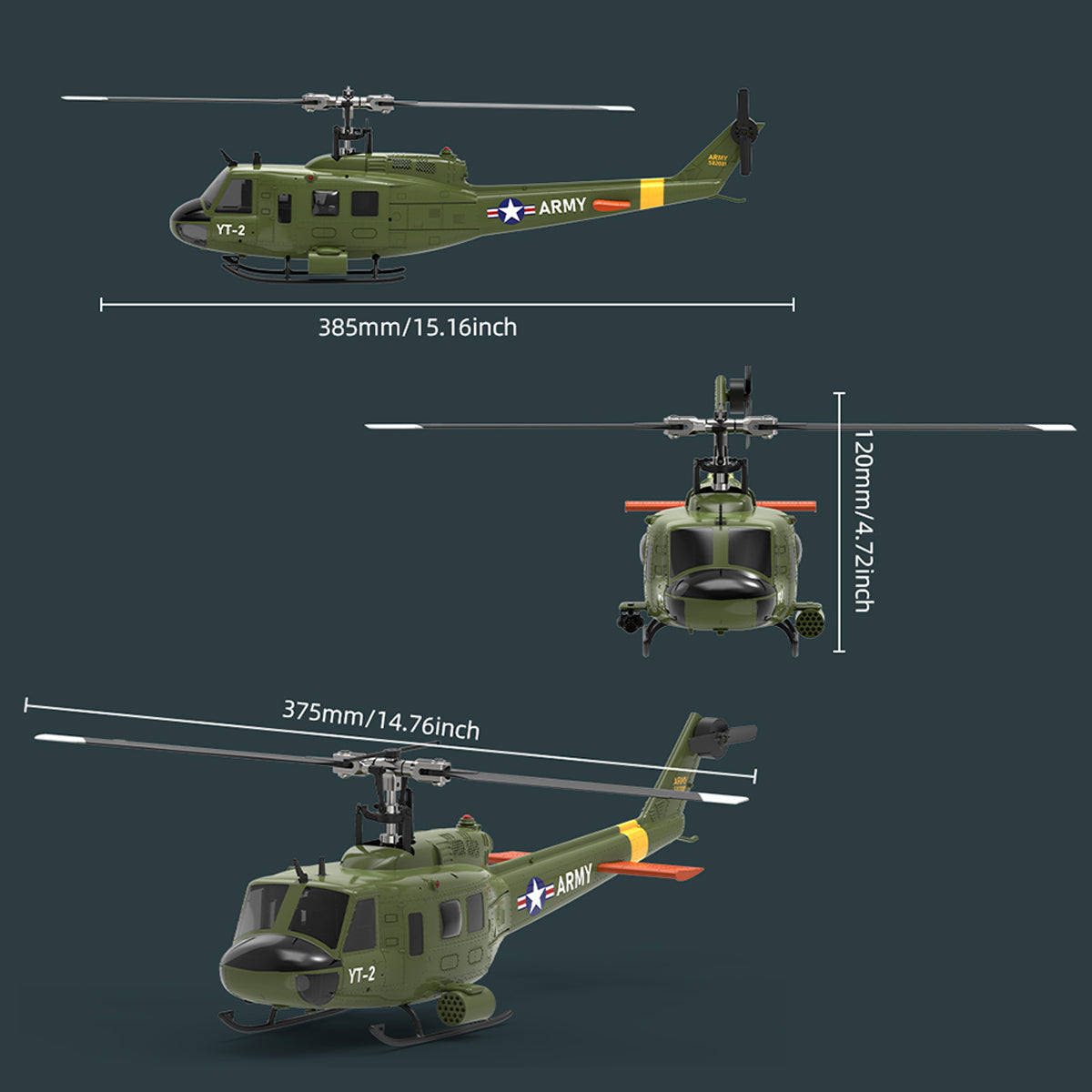

Rotor diameter: 372mm;

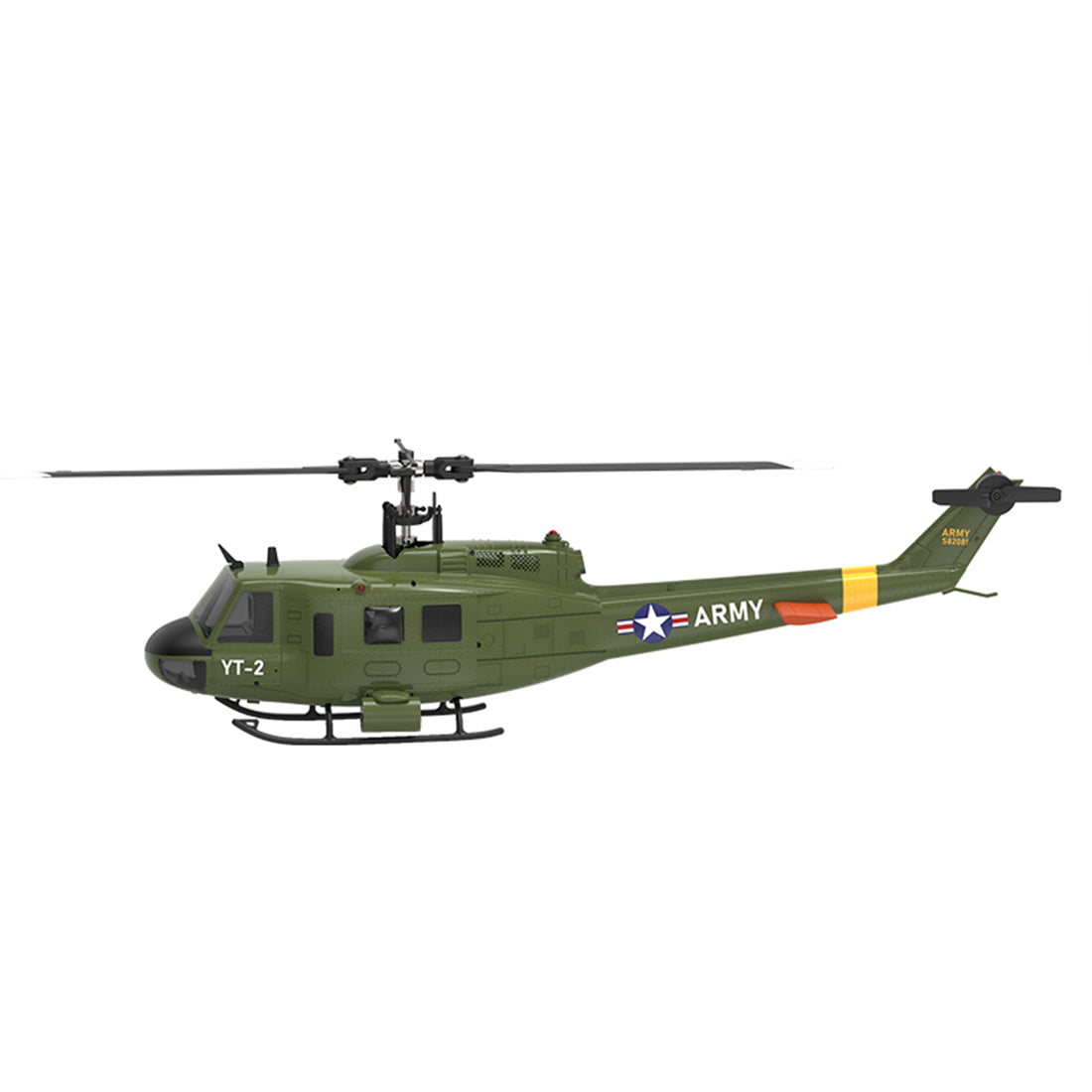

Fuselage length: 350mm;
Height: 122mm;
Weight: single aircraft weight 228g;
Drive motor: 2511 1200KV brushless motor;
Tail lock motor: 1204 5500KV brushless motor;
Servo: 4.3g metal digital servo;

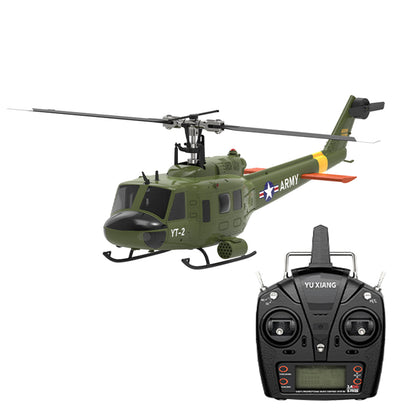

Remote control: 2.4G remote control;
Remote control distance: more than 120 meters;
Body battery: LI-POLY smart battery 7.4V (1200MAH) 25C;
Charger: USB charger;
Charging time: about 60 minutes;
Use time: 10-12 minutes.

Product Features

1.  Based on the UH-1 Huey helicopter of Bell Helicopter Company in the United States, it is reduced in proportion to 34:1, with high-simulation appearance details and cool lights.

2.  Adopting a flybarless design, dual-axis co-drive motor, and electronic stabilization system, it has a more precise feel, more stable flight, and optimized structure to reduce the chance of damage.

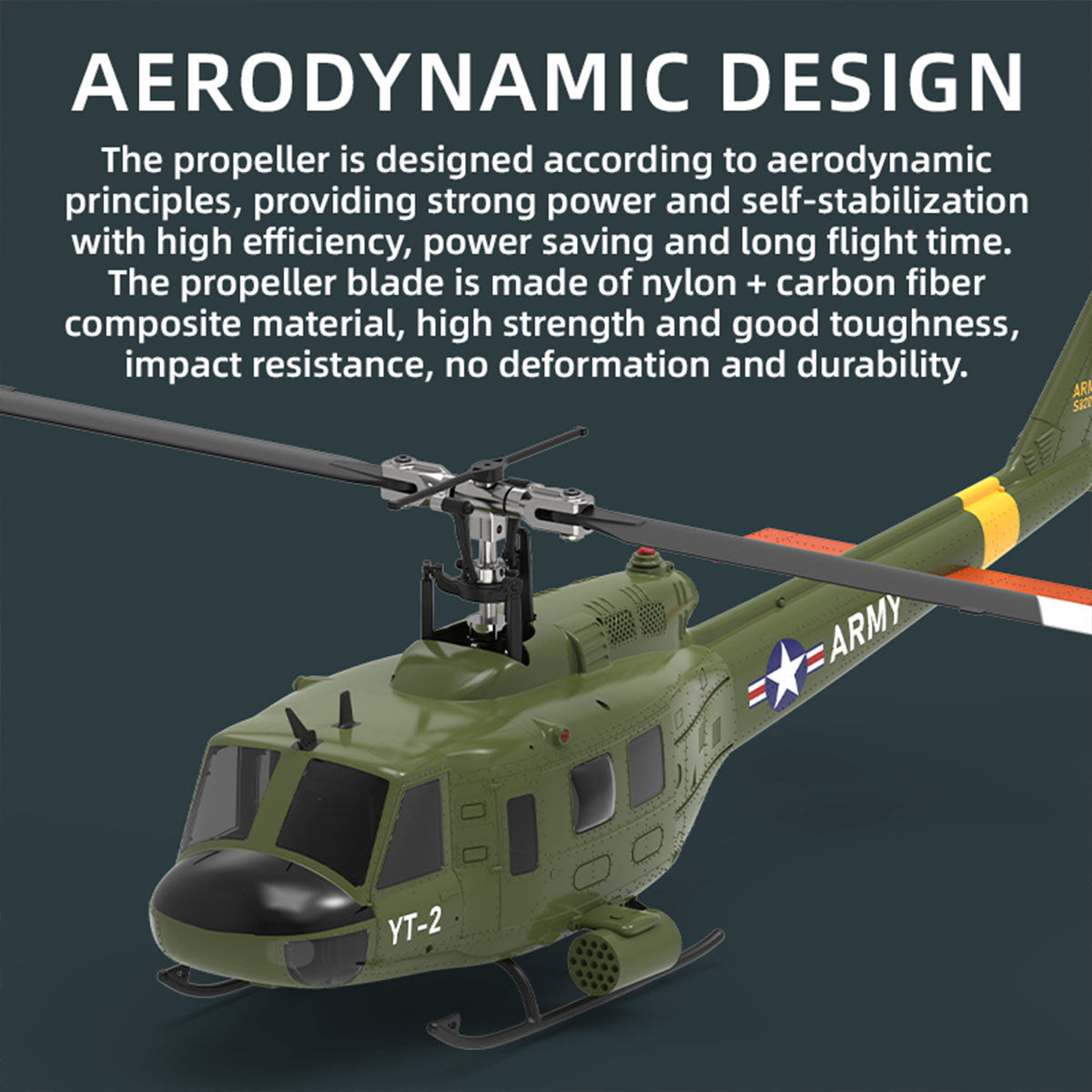

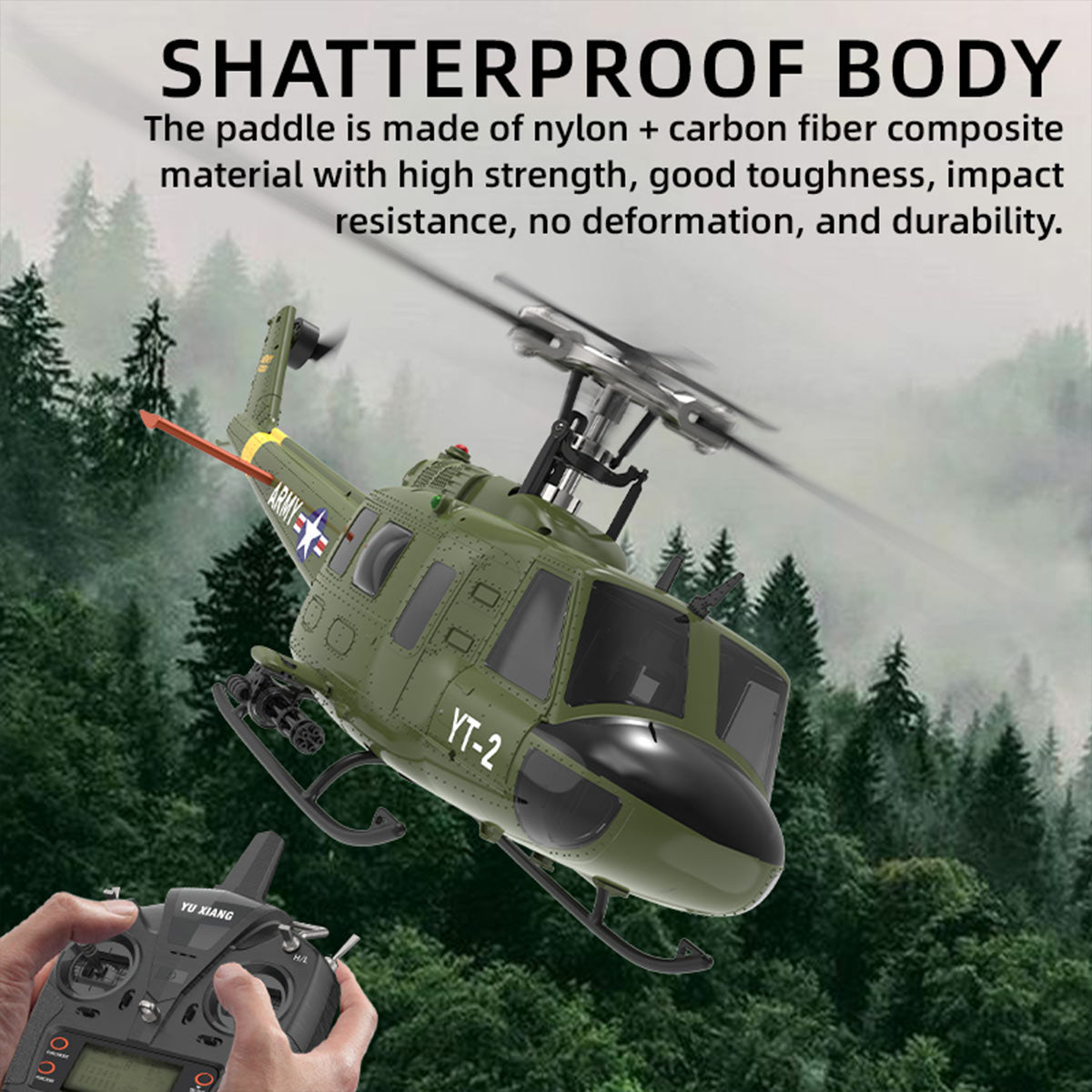

3.  The propeller is designed based on the principle of aerodynamics to provide strong power and self-stability of the fuselage. It is efficient, power-saving, and has a long flight time. The blades are made of nylon + carbon fiber composite materials, which are high in strength, good in toughness, impact-resistant, non-deformable, and durable.

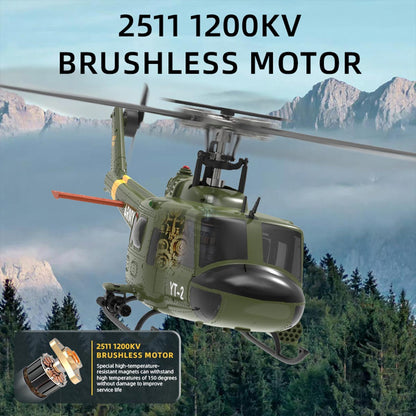

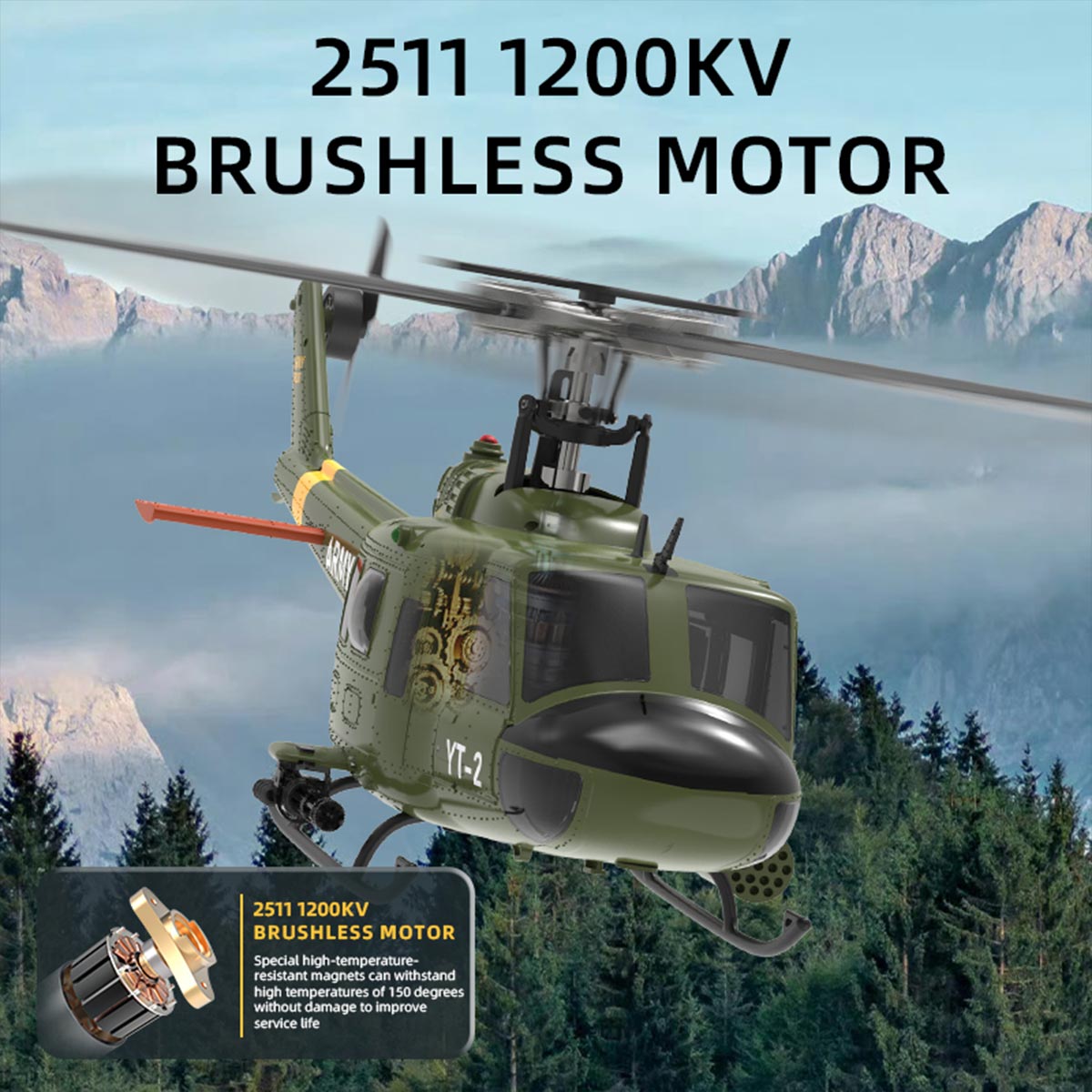

4.  Using 2511 1200KV brushless motor self-stabilizing co-drive to reduce gear agitation, it has the characteristics of low noise, high torque, sufficient power, and high efficiency. The special high-temperature resistant magnetic steel can withstand 150 degrees high temperature without damage, which increases the service life.

5.  The tail lock motor uses a special 1204 5500KV brushless motor, which is high temperature resistant, fast in response speed, stable tail lock, and not easy to damage after long-term work.

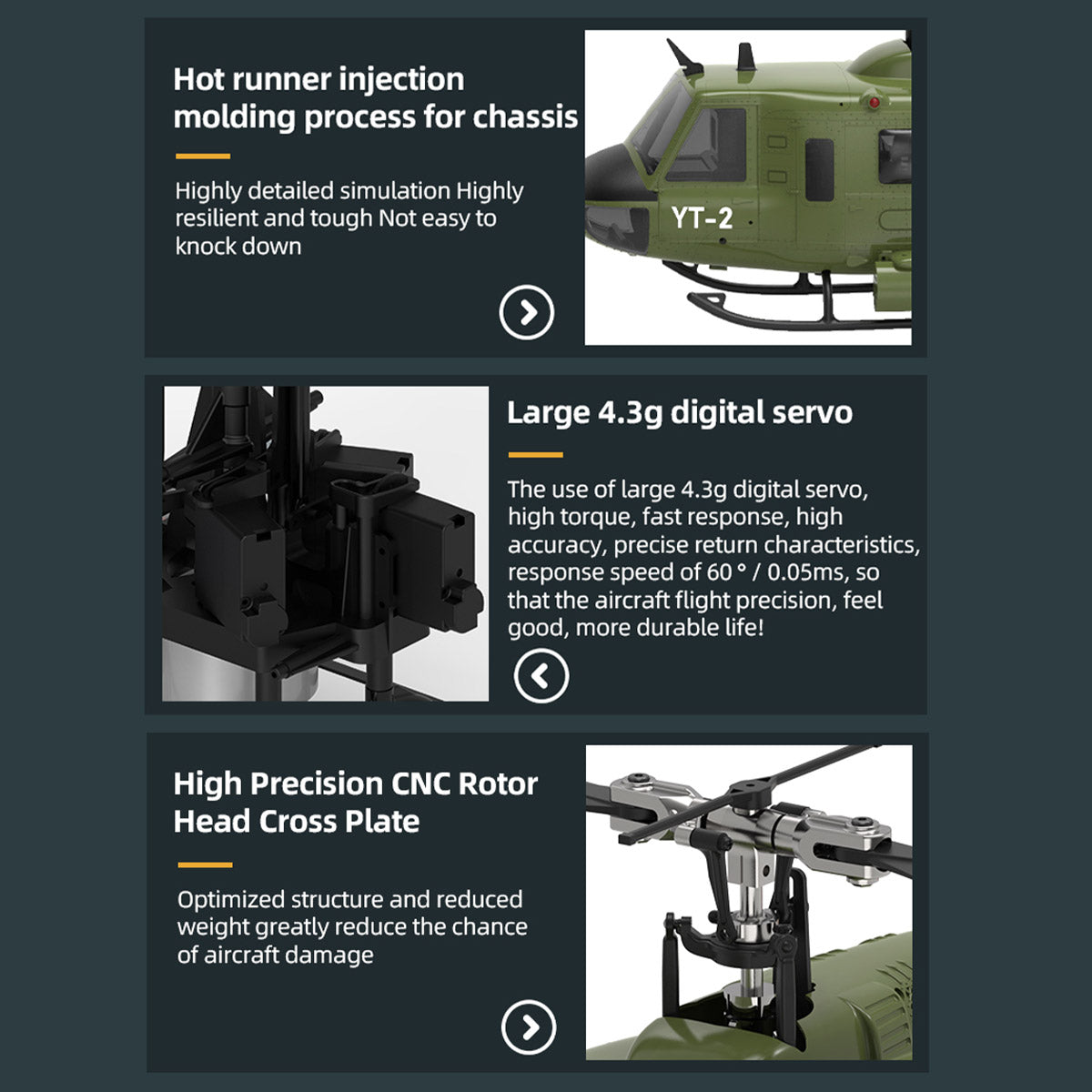

6.  Use an enlarged 4.3g metal gear servo with high torque, fast response, high precision and accurate return to center. The response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel good and last longer. Using 3 servos, it can fly accurately even if there is 4-5 winds outdoors.

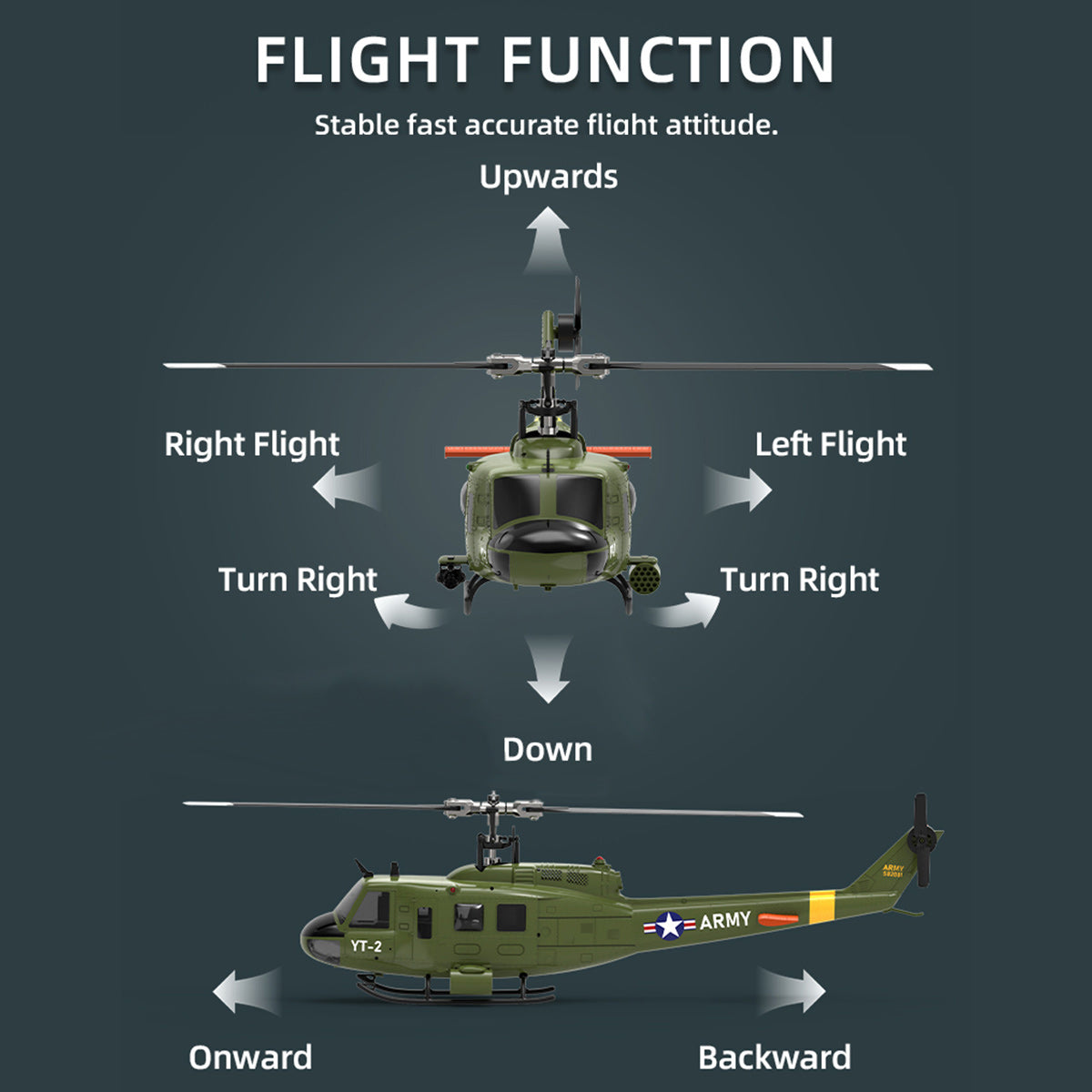

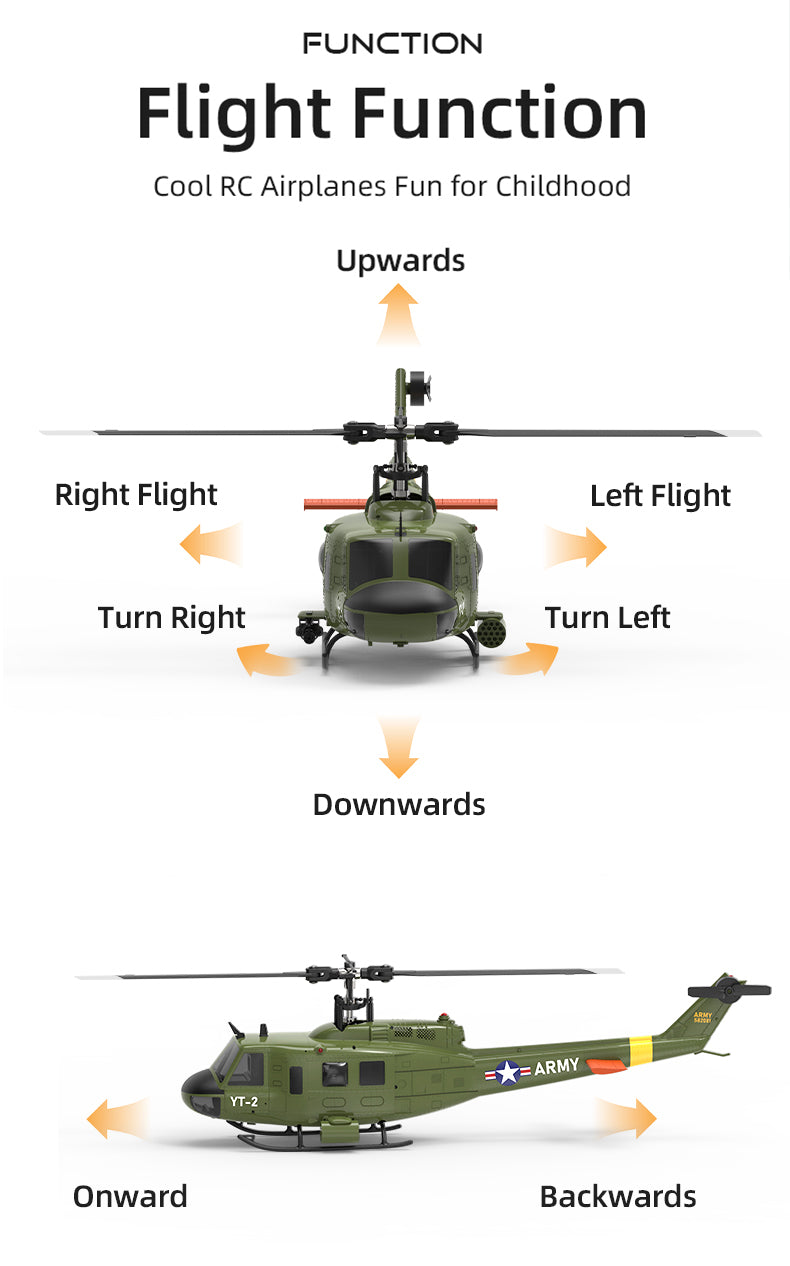

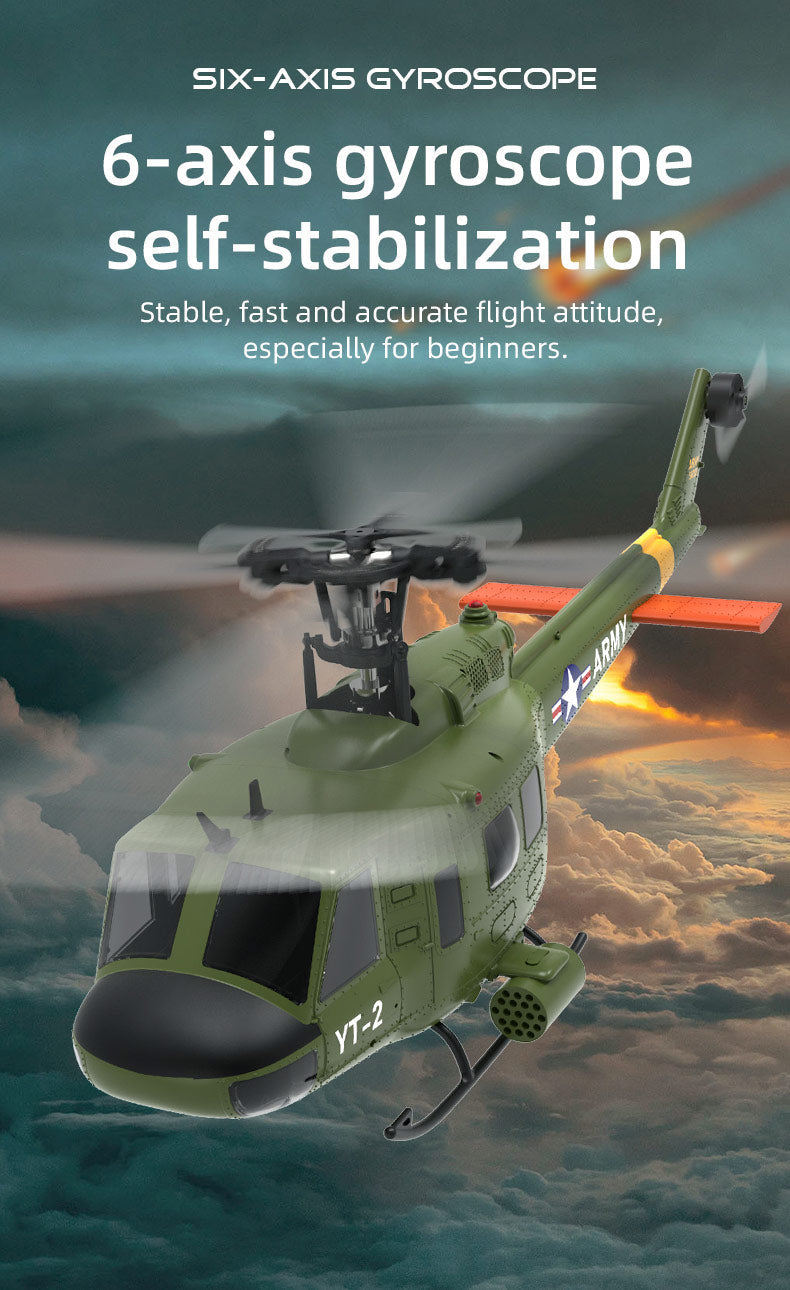

7.  Use a 6-axis gyroscope. It has a stable, fast and accurate flight attitude, which is especially suitable for beginners to fly.

8.  Use high-precision visual (optical flow) positioning and air pressure high-altitude mode, and it has a fixed-point function indoors and outdoors (limited height), which is easier for beginners to master.

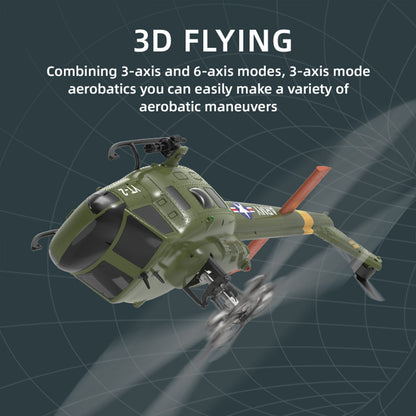

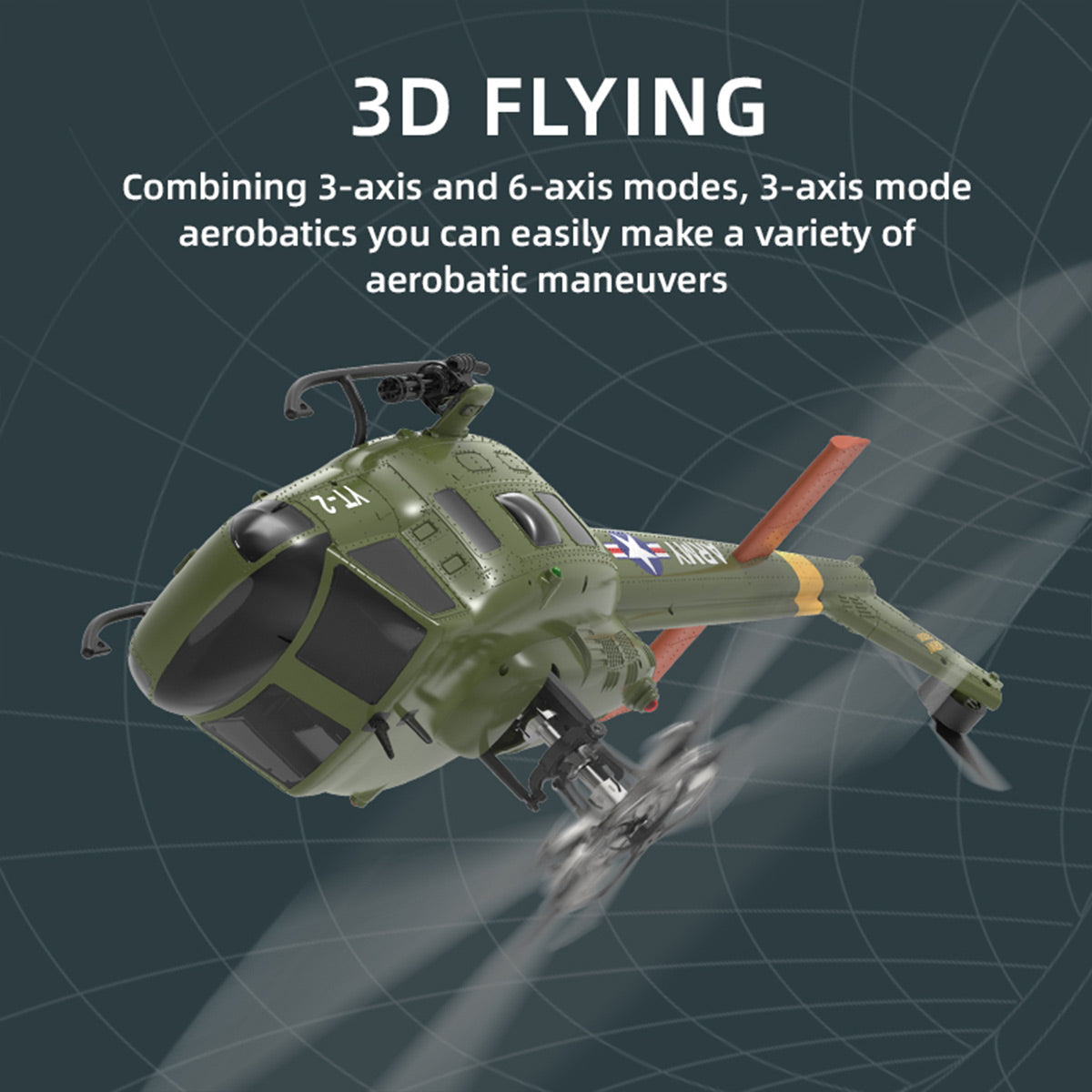

9.  Intelligent high-altitude one-button inverted flight, the inverted flight mode is operated in the same way as the forward flight mode, and beginners can easily master the inverted flight control essentials and become familiar with direction control.

10.  Use high-precision CNC rotor head cross plate to optimize the structure, reduce weight, and greatly reduce the probability of aircraft damage.

11.  The casing adopts hot runner injection molding technology, with high simulation details, good elasticity, toughness and not easy to crash.

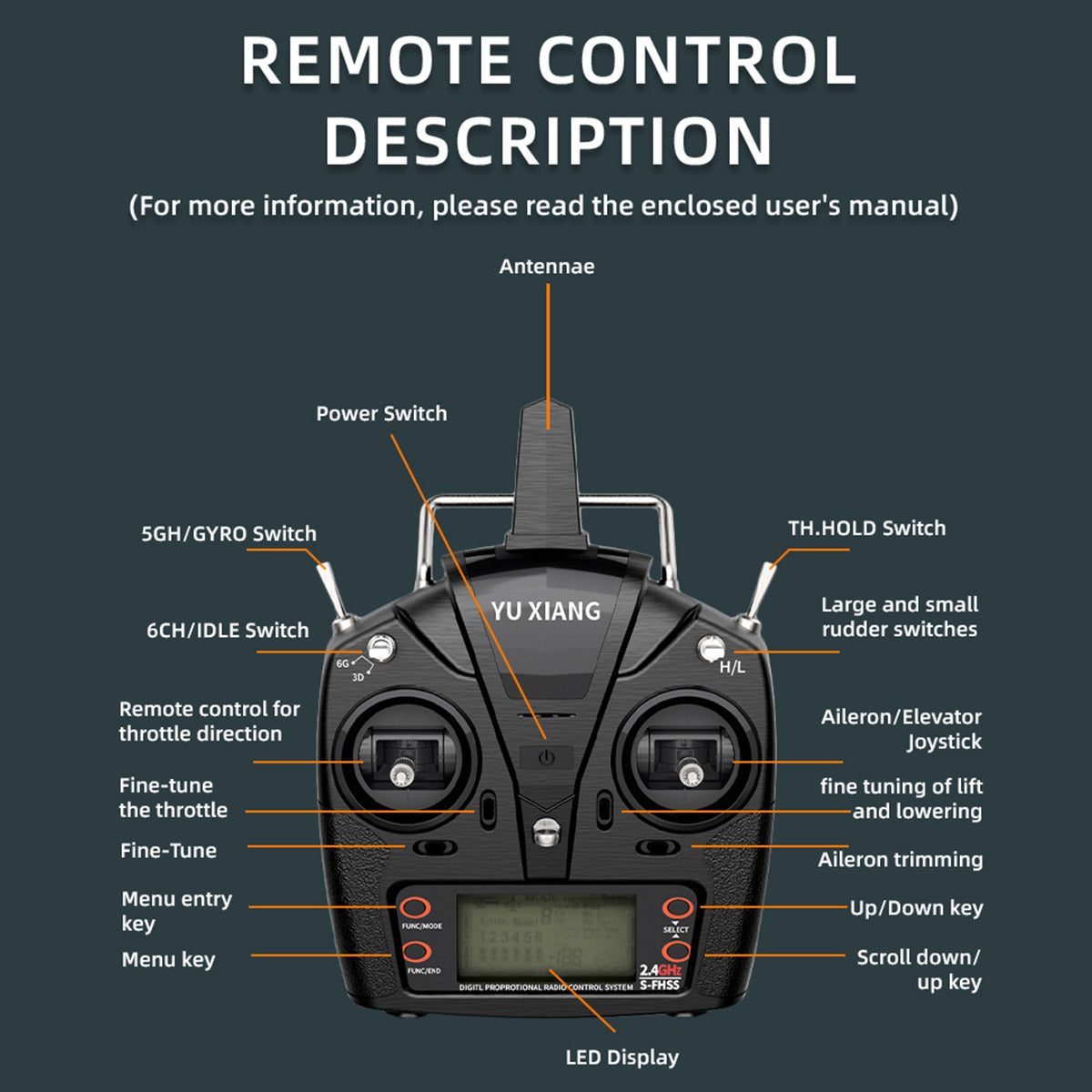

12.  Standard six-channel remote control, independent potentiometer optimizes the output of the joystick, and the operation is more precise.

13> Can be connected to an external ELRS receiver, and is compatible with open source remote controls on the market.

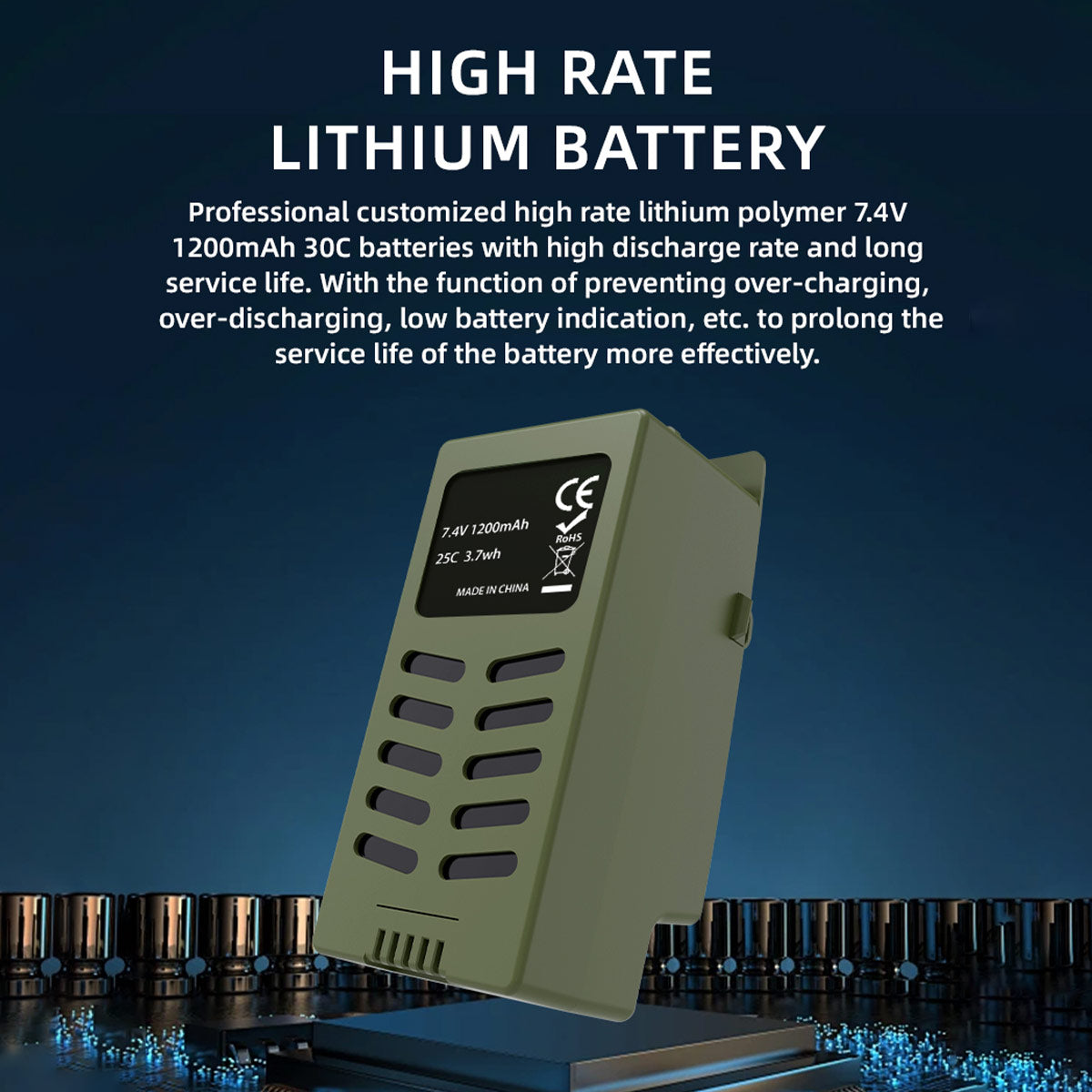

14.  Professionally customized high-rate lithium polymer 7.4V 1200mah 25C battery, high discharge rate and long service life. The flight time is about 9-12 minutes, and it can be used for 500+ cycles under normal use. It has functions such as preventing overcharge, over-discharge, and low-power indication, which can more effectively extend the battery life.

15.  Intelligent module battery, with charging protection and low-power protection functions, uses the universal TYPE-C plug on the market, and charging is more convenient.

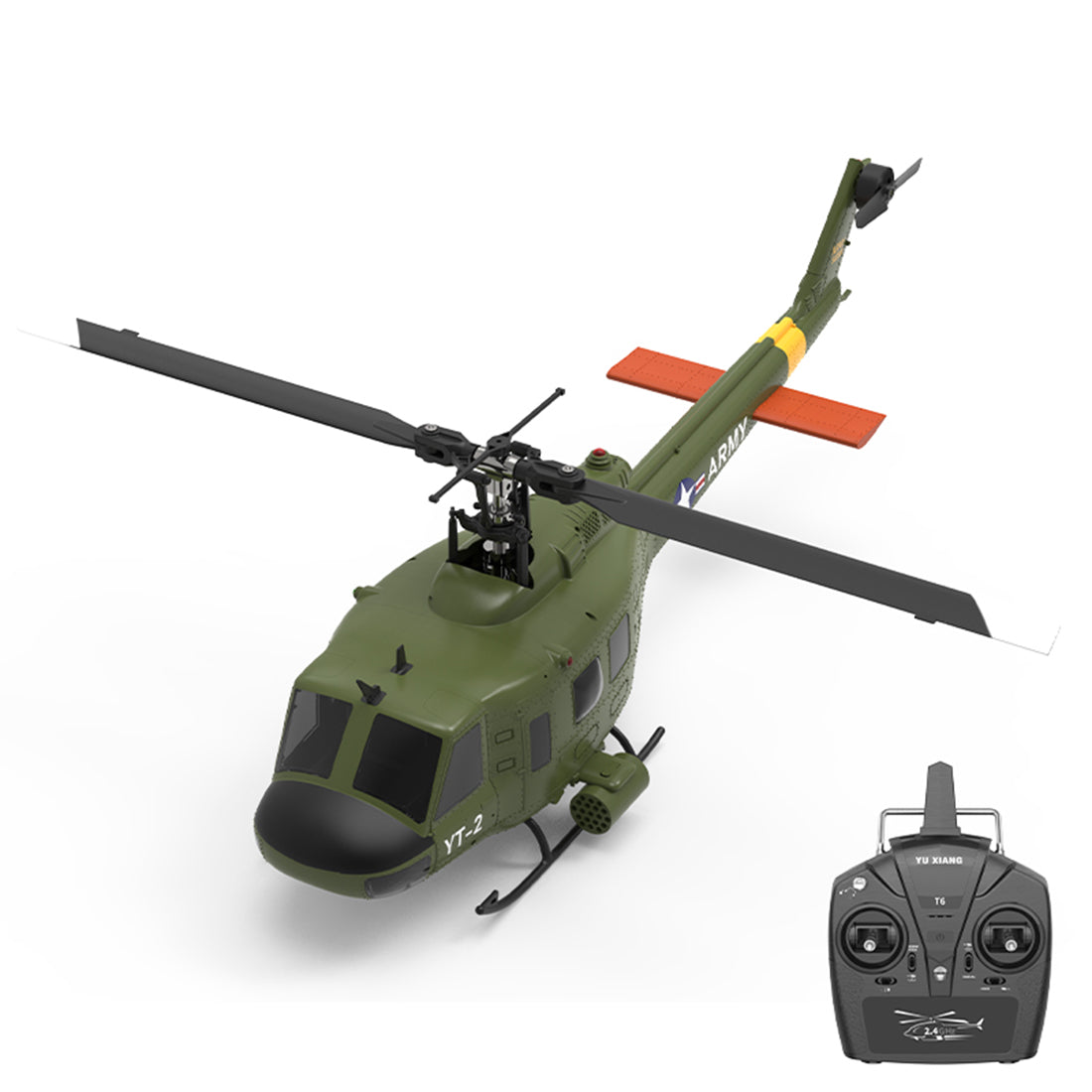

16.  The RTF version of the aircraft is ready to play, and is a high-quality product designed for helicopter beginners and enthusiasts. Whether it is for personal use or as a birthday gift for family, children, or friends, it is a good choice.

Applicable age: 14+

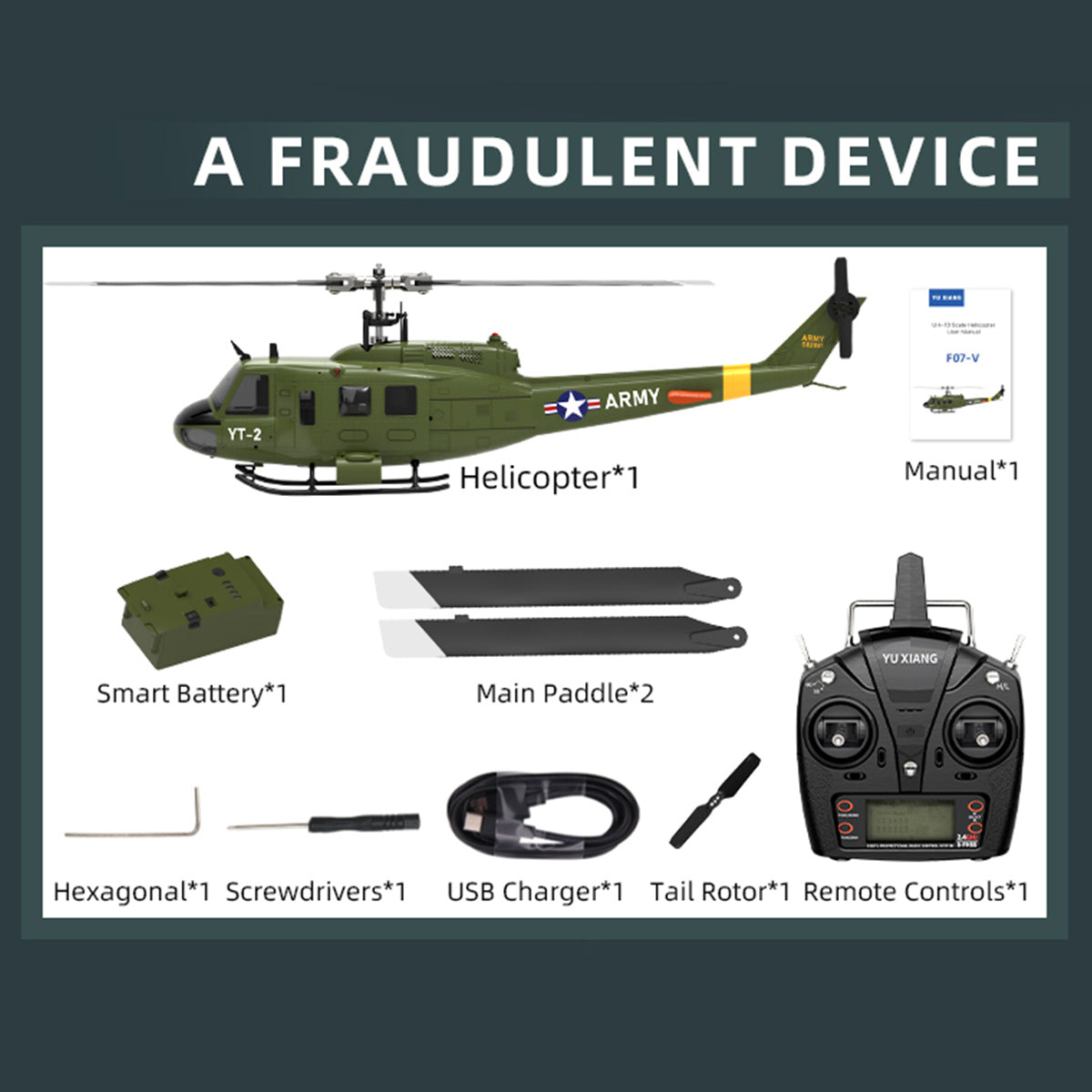

Packing list

1.  aircraft*1

2.  instruction manual*1

3.  dedicated USB charging cable*1

4.  main propeller blades*4

5.  tail propeller blades*1

6.  smart battery*1
